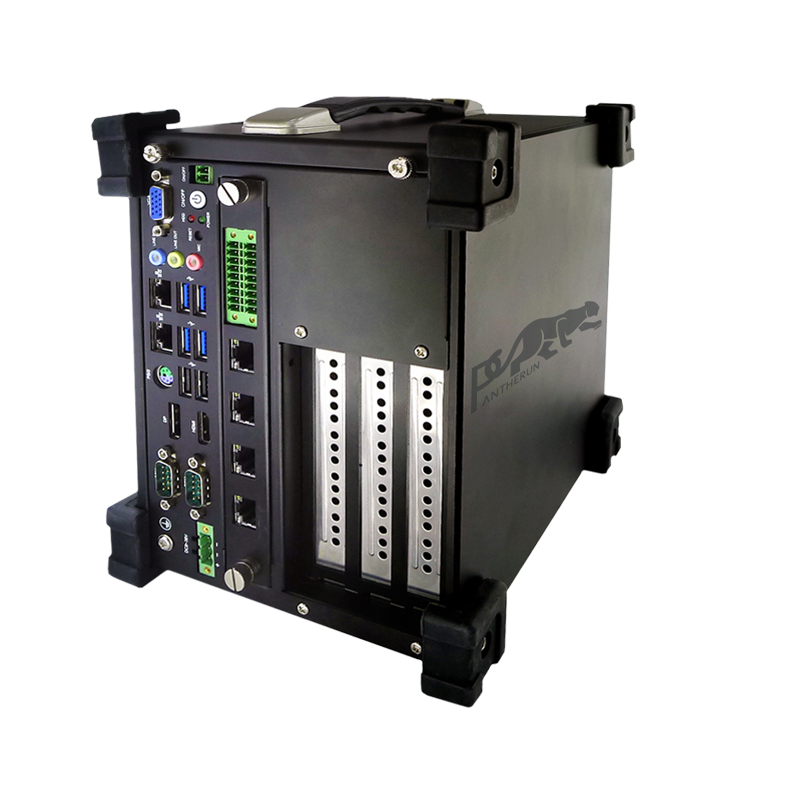

Cerebro A- Industrial Computer

The Cerebro A is a high performance Intel based Industrial PC focused on control and monitoring applications in Railway and Transportation sectors. It comes with whole aluminum structure of the thickness of
5mm, ensure its strength, stability and appearance. It also features a Fanless design.

It features 2 RS-232/422/485 serial ports, dual LAN ports, 4 USB 3.0 ports, 2 USB 2.0 hosts, and VGA and HDMI outputs. On extension slots it can support upto 14 USB 3.0 ports and 4 GbE ports. In addition, it fully complies with the mandatory test items of the EN 50155 standard, making them suitable for a variety of industrial applications.

Preinstalled with Linux Debian 7 or Windows Embedded Standard 7, the Cerebro A Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low
cost.

The dual megabit/Gigabit Ethernet ports offer a reliable solution for network redundancy, promising continuous operation for data communication and management. With 16 PCI-E slots , 2 PCI slots and 1 Extend Slot, the Cerebro A provides they most flexibility in its class of Railway certified Industrial Computers available in the market.

Request for Datasheet

Variant

Product Highlights

  • Built for harsh environments and temperature ranges (-10°C ~ 60°C)
  • Hardened for vibration, shock and surge, and electrical noise immunity
  • Intel® LGA 1150 Socket Core i7/i5/i3 Processor (Max 54W)
  • 2 x Intel® i211AT 10/100/1000Base-T Ethernet
  • 2 x RS-232/422/485 ports with automatic flow control
  • 4 x USB3.0, 2 x USB2.0, 1 x PCI-E x16 slot, 2 x PCI slots, 1 x extend slot
  • The extend slot can be used to extend 14 x USB3.0 or 4 x GbE or other functional interfaces
  • 9~36V wide input voltage can meet the needs of different industries
  • CE/FCC certified, and certified to EN50155 Railway standard

Specification

Salients

Designed to Industrial needs

Built for harsh environments and temperature ranges (-10°C ~ 60°C)

Fanless, convection-cooled with no moving parts for extended durability

Hardened for vibration, shock and surge, and electrical noise immunity

Intel® LGA 1150 Socket Core i7/i5/i3 Processor (Max 54W)

Onboard 4G DDR3L/1600Mhz DRAM (Max 8GB)

2 x Intel® i211AT 10/100/1000Base-T Ethernet

2 x RS-232/422/485 ports with automatic flow control VGA, HDMI, DP support 3 x independent displays

4 x USB3.0, 2 x USB2.0, 1 x PCI-E x16 slot, 2 x PCI slots, 1 x extend slot

The extend slot can be used to extend 14 x USB3.0 or 4 x GbE or other functional interfaces

Thumb screw for easy maintenance and expansion card installation

The lead switch is convenient for the actual field operation 9~36V wide input voltage can meet the needs of different industries

Certifications tailored to multiple vertical segments

CE/FCC certified, and certified to EN50155 Railway standard

General

Certification

FCC, CE, ROHS, EN50155

Dimensions

212x150x220mm (W x D x H)

Mounting

Stand mount, Enclosure mount

Net Weight

6.4Kg

Power Requirements

9-36VDC

Power Consumption

Change according to CPU

Hardware

BIOS

AMI 64Mbit Flash BIOS

CPU

Intel® LGA 1150 Socket Core i7/i5/i3 Processor (Max 54W)

System Chip

Intel® Haswell H81

Memory

Onboard 4GB DDR3L/1600MHz Dram (Max 8GB)

Graphics

Intel® HD Graphics 4000 series (by CPU)

Ethernet

2 * Intel® i211AT GbE

Storage

1 * built in 2.5” SATA HDD bracket

1 * M.2 socket (2260/2280 size)

Epansion

1 * Full size Mini PCI-e

1 * PCI-e x16, 2 * PCI slots (Optional 1 PCI-e x16, 1PCI slots or 3 PCI slots)

Extend

1 Extend Card

Support 8 x USB3.0 (Max 14)

4 * GIGALAN (Max 8)

4 * COM (RS232/422/485)

16 bit GPIO(5/12/24V) (Max 32bit)

IO Interface

Power Connector

1 * 3 Pin, terminal Block with lock

Serial Port

2 * RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control

Display

1 * VGA, support 1920 x 1200@60Hz

1 * HDMI 1.4a, support 1920 x 1080@60Hz

1 * DP 1.2, support 1920 x 1080@60Hz

LAN Port

2 * RJ45, 10/100/1000 Mbps

USB Port

4 * USB3.0, 2 x USB2.0

PS/2 Port

1 * PS/2 Keyboard & Mouse port

Audio

MIC, Line-in, Line-out

Power Button

1 * Power Button

Reset Button

1 * Reset Button

LED

1 * Power LED, 1 x HDD LED

Front Power Button

1 * 2Pin Power connector

Environment

Temperature

Operating: -10°C ~ 60°C

Storage: -20°C ~ 70°C

Relative Humidity

10 ~ 90% RH, non-condensing

Vibration Protection

Operating , IEC 60068-2-64-2008

5.1Grms, random, 5 ~ 500Hz,1hr/axes (SSD)

Shock Protection

Operating , IEC 60068-2-27-2008

30G,half sine wave,11ms(SSD)

CE Protection

EN 55032 : 2015

EN 55024 : 2010 + A1 : 2015

EN 61000-3-2 : 2014

EN 61000-3-3 : 2013

Warranty

5 Years Limited Warranty

Ordering Information

Cerebro-A

Onboard 4GB DDR3L/1600MHz DRAM (Processor and Storage not included)

Cerebro-A-S

Onboard 8GB DDR3L/1600MHz DRAM (Processor and Storage not included)
