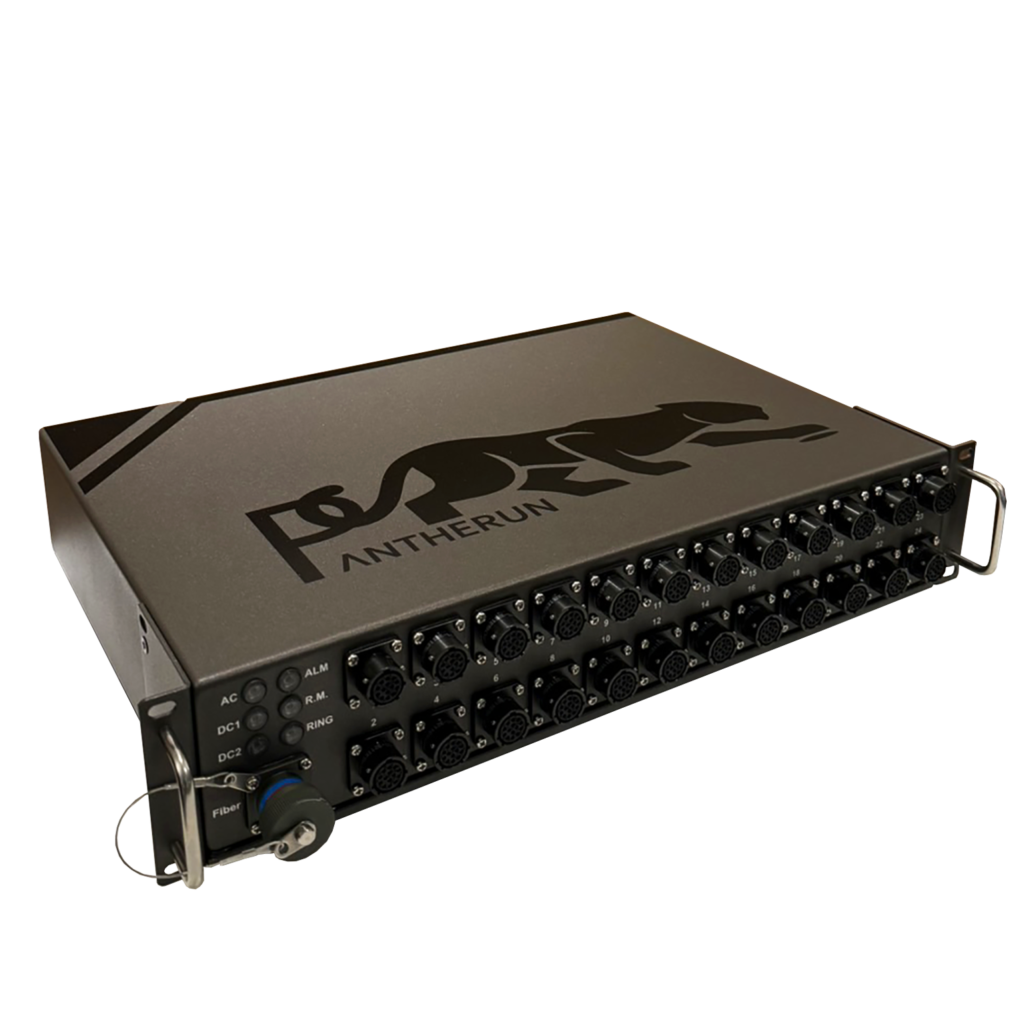

Hunter-28PL2
28-Port Military Gigabit Managed L2 switch

The Hunter military series provides 24 ports of Gigabit L2 Ethernet connectivity in a compact rack mount form factor for a wide variety of extended military applications. This switch is a high performance L2 managed switch, providing wide temperature operation with PoE and Fiber over SFP. It is designed around to the highest standards required by military application and has passed required certifications.
It runs the Linux OS, on a high-performance ARM Cortex A9, with integrated switching function, to provide a highly scalable architecture that allows for addition of functions in a very flexible manner. It can be managed with powerful open source management tools like called Zabbix, as well as a user-friendly, modern web based GUI.
It supports a power budget of up to 720W for PoE/PoE+, and is ideal for connecting PoE-powered Edge devices such as IP cameras, wireless access points, sensors, and more.
Request for Datasheet

Variant

Product Highlights

  • 24x Gigabit Ethernet ports with IEEE 802.3at PoE+
  • 4x 1/10 Gigabit Ethernet SFP+ Slot
  • Built for harsh environments and wide temperature range application
  • RSTP, MSTP, ERPS, LACP for Network Redundancy
  • QoS CoS/DSCP to increase determinism
  • Supports IGMP Snooping v1/v2/v3, up to 512 groups
  • DHCP Relay Option 82 for policies IP address assignment
  • SNMP v1/v2c/v3 for network management
  • Supports Storm Protection
  • Supports PoE PD Alive Check Function for PoE Device Power Recycle

Specification

Software features

Network Redundancy

RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP

Security

802.1X, RADIUS, TACACS+, SSL, SSH

Management

IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP

Diagnostics

RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP, RSPAN

Configuration

DHCP Server/Client, Relay Option 82, TFTP, USB

Filter

802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning

Time Sync.

NTP, IEEE1588v2 OC (Software Timestamp), TC (Hardware Timestamp)

QoS

CoS, DSCP, WRR/SPQ Queuing, Storm Protection

PoE

Powering Status, PoE Monitoring, Scheduling, PD Alive Check

Interfaces

RJ45 Port

24x 10/100/1000T(x) with PoE+, auto negotiation speed duplex mode, auto MDI/MDI-X

Fiber Port

4x 1/10 Gigabit Ethernet SFP+ Slot

PoE Pin Out

V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A

LED Indicators

Per unit: DC1, DC2, AC, Fault, Ring Master, Ring State

Alarm Contact

1x relay output with current carrying capacity of 1A @ 24 VDC

Digital Inputs

1x isolated input from the electronics.

+13 to +30V for state “1”

-30 to +3V for state “0”

Max. input current: 8mA

Button

Multiple functions reset button

Physical Characteristics

Housing

IP65

Dimension (W x H x D)

 440 mm x 342.9 mm x 88.9 mm (connectors included)

Weight

9.5 kg

Installation

Rack Mounting

Environmental Limits

Operating Temperature

Standard: -20°C ~ 60°C (-4°F ~ 140°F)
Extended: -40°C ~ 75°C (-40°F ~ 167°F)
For 10G SFP+: -40 ~ 60°C (32°F ~ 140°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Ambient Relative Humidity

5 to 95%, (Non-Condensing)

Warranty

5 years limited hardware warranty on all Pantherun branded products

Ordering Information

Hunter-28PL2-24PoE-10GSFP-DC

24-Port Military Gigabit Managed L2 switch with 24 PoE and 4 10G SFP ports with dual DC ports
